The steadyPRINT WebCenter provides a simple integration of macmon Network Access Control. After its successful installation, the macmon end device group membership can be controlled directly in the steadyPRINT WebCenter.

Configuration

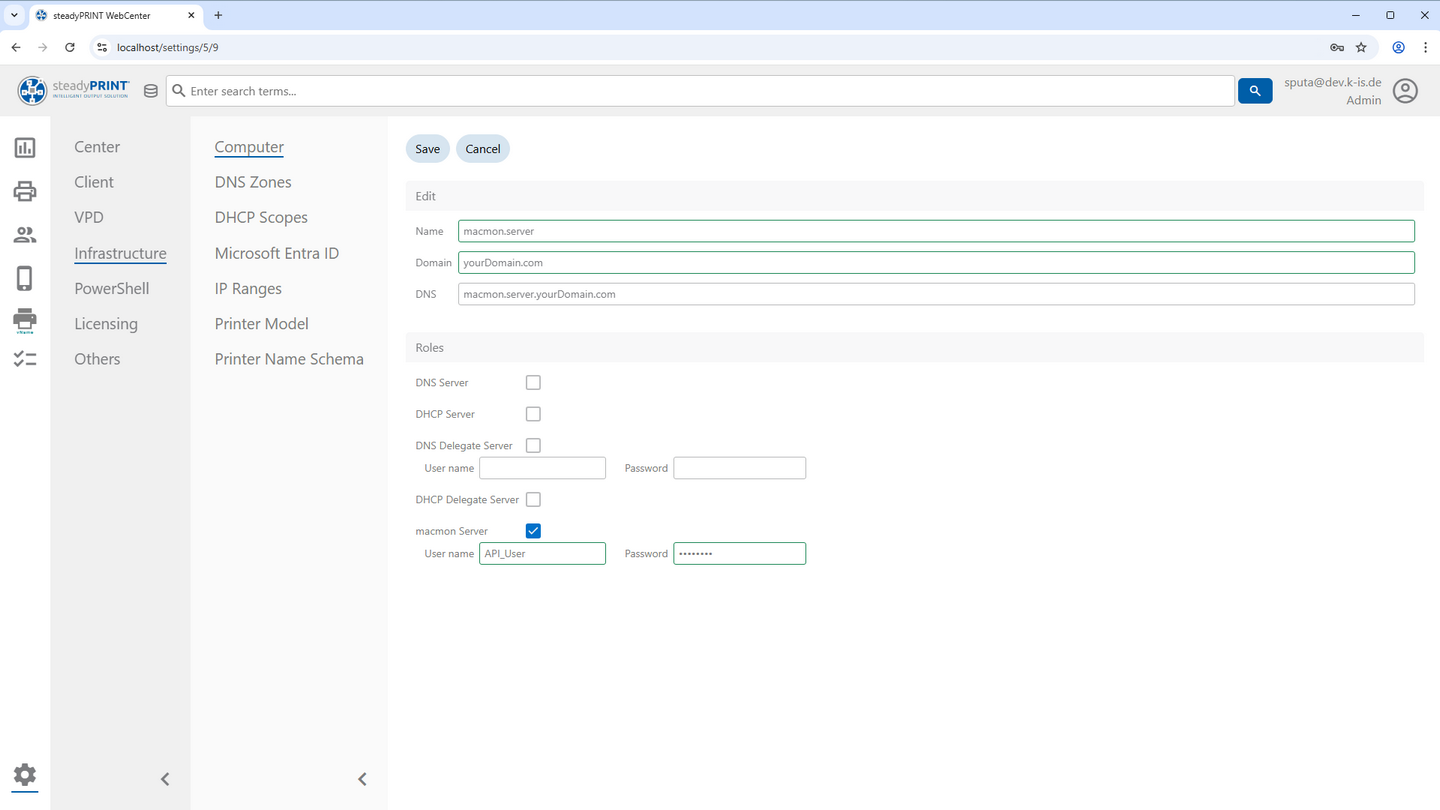

In order to use the function, the data of  of the macmon server inlcuding its user has to be collected in the settings of the steadyPRINT WebCenter (see Figure: Configuration of the macmon server). For the user, this is an account defined by macmon which must have permission to interact with the macmon API.



sp_webcenter_017Figure  17: steadyPRINT WebCenter - Configuration of the macmon server



Management of the end device group

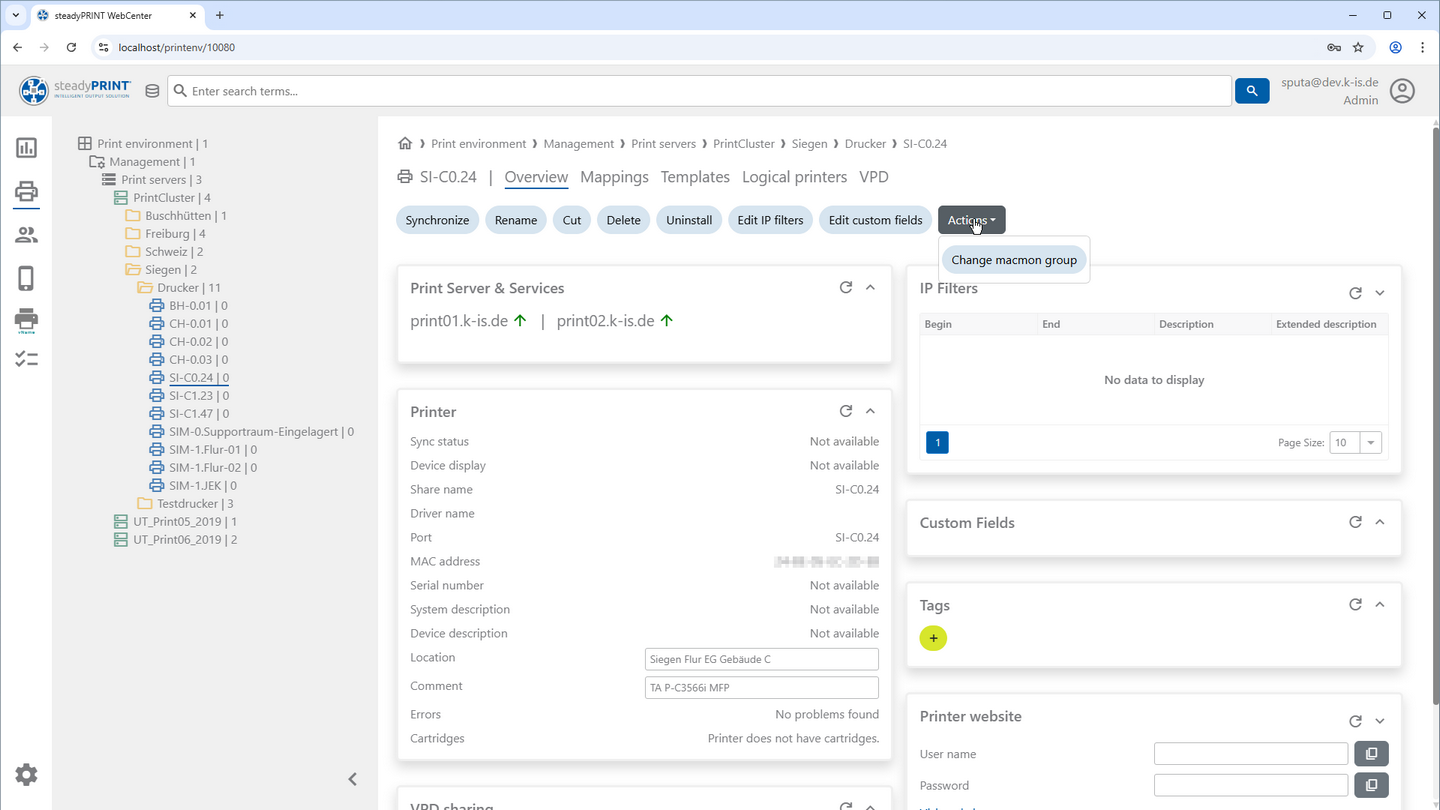

If a macmon server is defined in the settings and the printer's MAC address is known, the end device group membership of the printer can be viewed via the button change macmon group (see figure: View macmon group).


sp_webcenter_018

Figure 18: steadyPRINT WebCenter - View macmon group

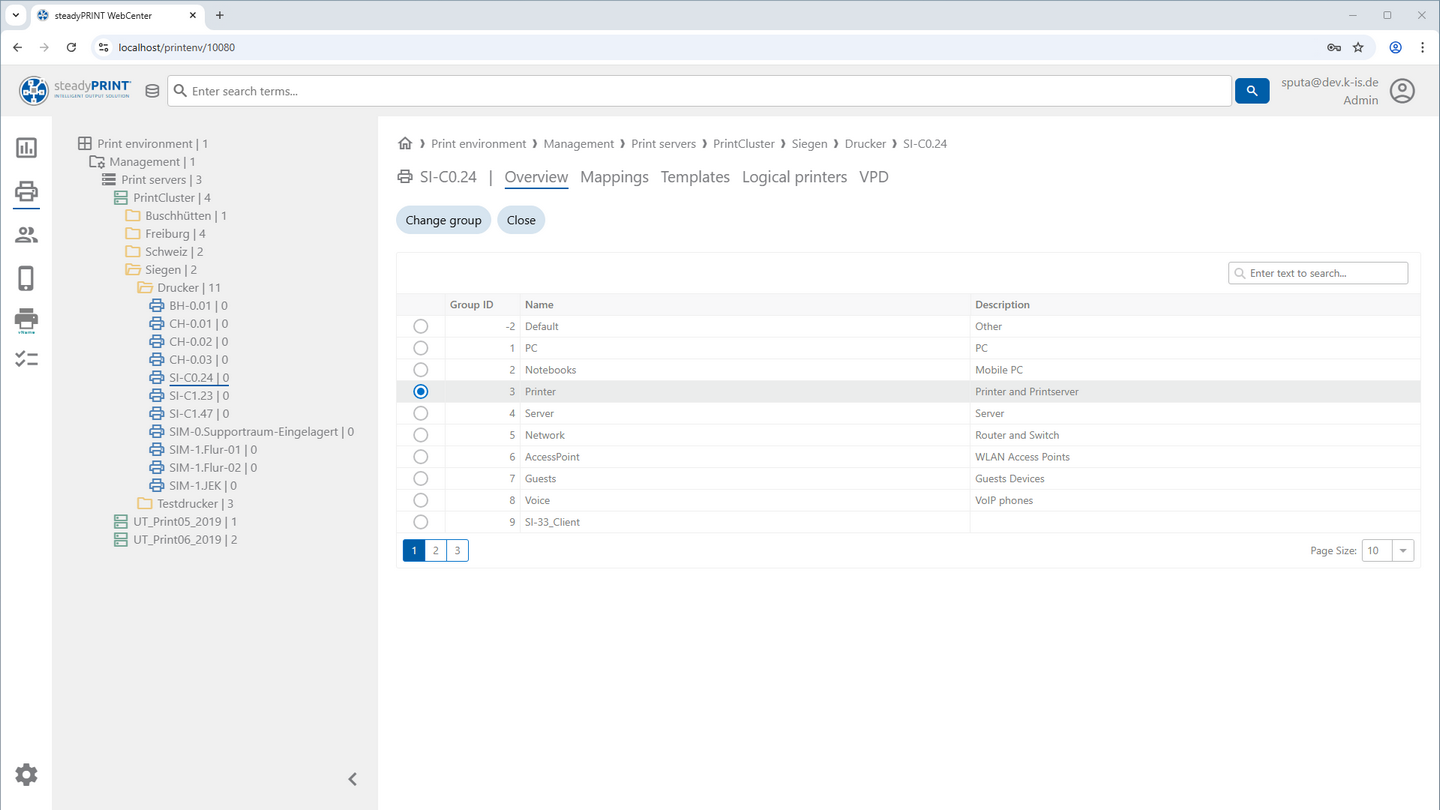

If the group is edited and stored in the view (see figure: Edit macmon group), the change is transferred and implemented in a request to the macmon server via the macmon API .



Note

Authentication and authorization



If the login data of the macmon user are not valid or if the user has no full access to the API which can be configured in the macmon user administration, the change will be rejected from the macmon server.





Abbildung <%sp_webcenter_019Figure 19: steadyPRINT WebCenter - Edit macmon group
